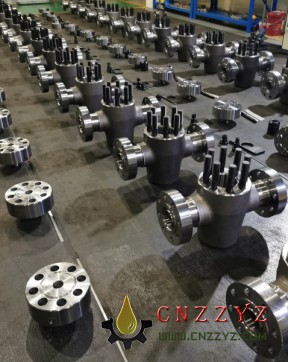

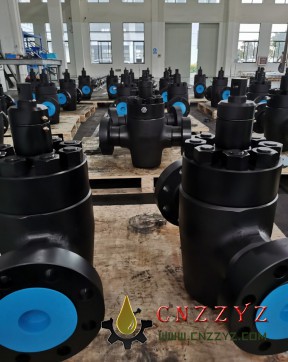

API6A平板闸阀

This high performance, bi-directional slab gate valve is ideal for high pressure, critical service application 3000 through 20000 psi on well-heads, production trees and manifolds.
◆Specification
Slab gate valve meet the requirements of the latest edition of API 6A and / or API 6D SSV by replacing the expanding gate with a slab gate.
Material for H2S service in accordance with NACE MR-01-75, latest edition.

◆Reliable Performance
♦ Forged body & bonnet
♦ Low operation torque
♦ metal-to-metal body/bonnet seal
♦ metal-to-metal back seal can be energized regardless of gate position
♦ Lubrication fittings for easy maintenance
♦ Gate guides retain body lubricants and protect gate surface
♦ Manual or actuated operation
♦ Simple design assures low cost
♦ Flanged or screwed outlets

◆ Availability Sizes

SIZE	2000 psi	3000 psi	5000 psi	10000 psi	15000 psi
1-13/16″	√	√	√	√	√
2-1/16″	√	√	√	√	√
2-9/16″	√	√	√	√	√
3-1/16″	——	——	——	√	√
3-1/8″	√	√	√	——	——
4-1/16″	√	√	√	√	√
5-1/8″	√	√	√	√	√
7-1/16″x 6-3/8″	√	√	√	√	√
7-1/16″	√	√	√	√	√
